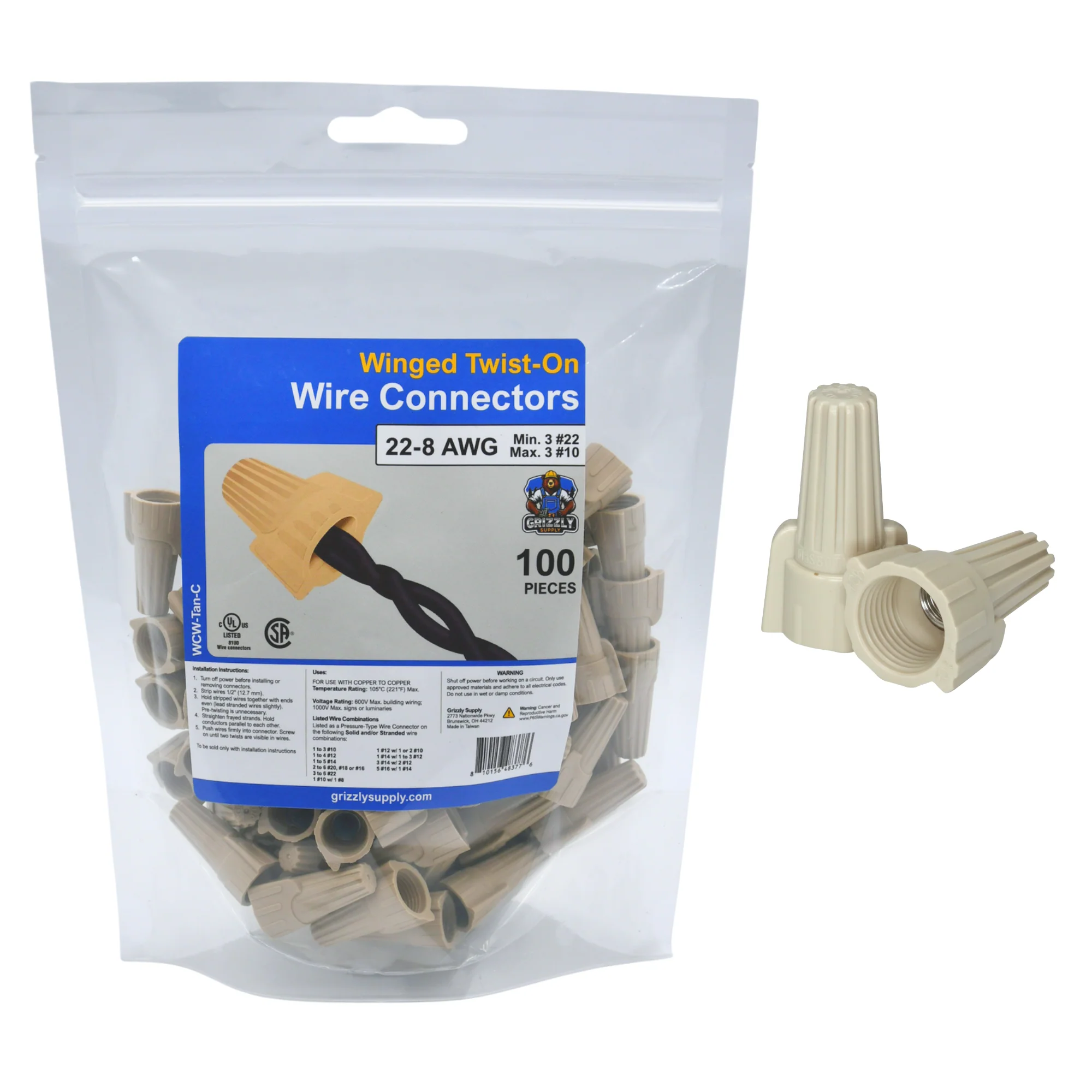

Winged Tan Screw-On Wire Connector 22-8 AWG 100/Bag #WCW-Tan-C
Winged Yellow Screw-On Wire Connector 18-10 100/Bag
Qty. 100
Twist-On
22-8 AWG
Min. 3 #22 Sol
Max. 3 #10
UL Recognized (US): Yes
CSA: Yes
WARNING: Shut off power before working on a circuit. Only use approved materials and adhere to all electrical codes
Do not use in wet or damp conditions.
FOR USE WITH COPPER TO COPPER
Temperature Rating: 105°C (221°F) Max.
Voltage Rating: 300V Max
Installation Instructions:
1. Turn off power before installing or removing connectors.
2. Strip wires 1/2" (12.7 mm).
3. Hold stripped wires together with ends even (lead stranded wires slightly). Pre-twisting is unnecessary.
4. Straighten frayed strands. Hold conductors parallel to each other.
5. Push wires firmly into connector. Screw on until two twists are visible in wires.
To be sold only with installation instructions
Shortened List of Wire Combinations:
1 to 3 #10
1 to 4 #12
1 to 5 #14
2 to 6 #20, #18 or #16
3 to 6 #22
1 #10 w/1 #8
1 #12 w/1 or 2 #10
1 #14 w/1 to 3 #12
3 #14 w/2 #12
5 #16 w/1 #14
Description
Winged Yellow Screw-On Wire Connector 18-10 100/Bag
Qty. 100
Twist-On
22-8 AWG
Min. 3 #22 Sol
Max. 3 #10
UL Recognized (US): Yes
CSA: Yes
WARNING: Shut off power before working on a circuit. Only use approved materials and adhere to all electrical codes
Do not use in wet or damp conditions.
FOR USE WITH COPPER TO COPPER
Temperature Rating: 105°C (221°F) Max.
Voltage Rating: 300V Max
Installation Instructions:
1. Turn off power before installing or removing connectors.
2. Strip wires 1/2" (12.7 mm).
3. Hold stripped wires together with ends even (lead stranded wires slightly). Pre-twisting is unnecessary.
4. Straighten frayed strands. Hold conductors parallel to each other.
5. Push wires firmly into connector. Screw on until two twists are visible in wires.
To be sold only with installation instructions
Shortened List of Wire Combinations:
1 to 3 #10
1 to 4 #12
1 to 5 #14
2 to 6 #20, #18 or #16
3 to 6 #22
1 #10 w/1 #8
1 #12 w/1 or 2 #10
1 #14 w/1 to 3 #12
3 #14 w/2 #12
5 #16 w/1 #14
