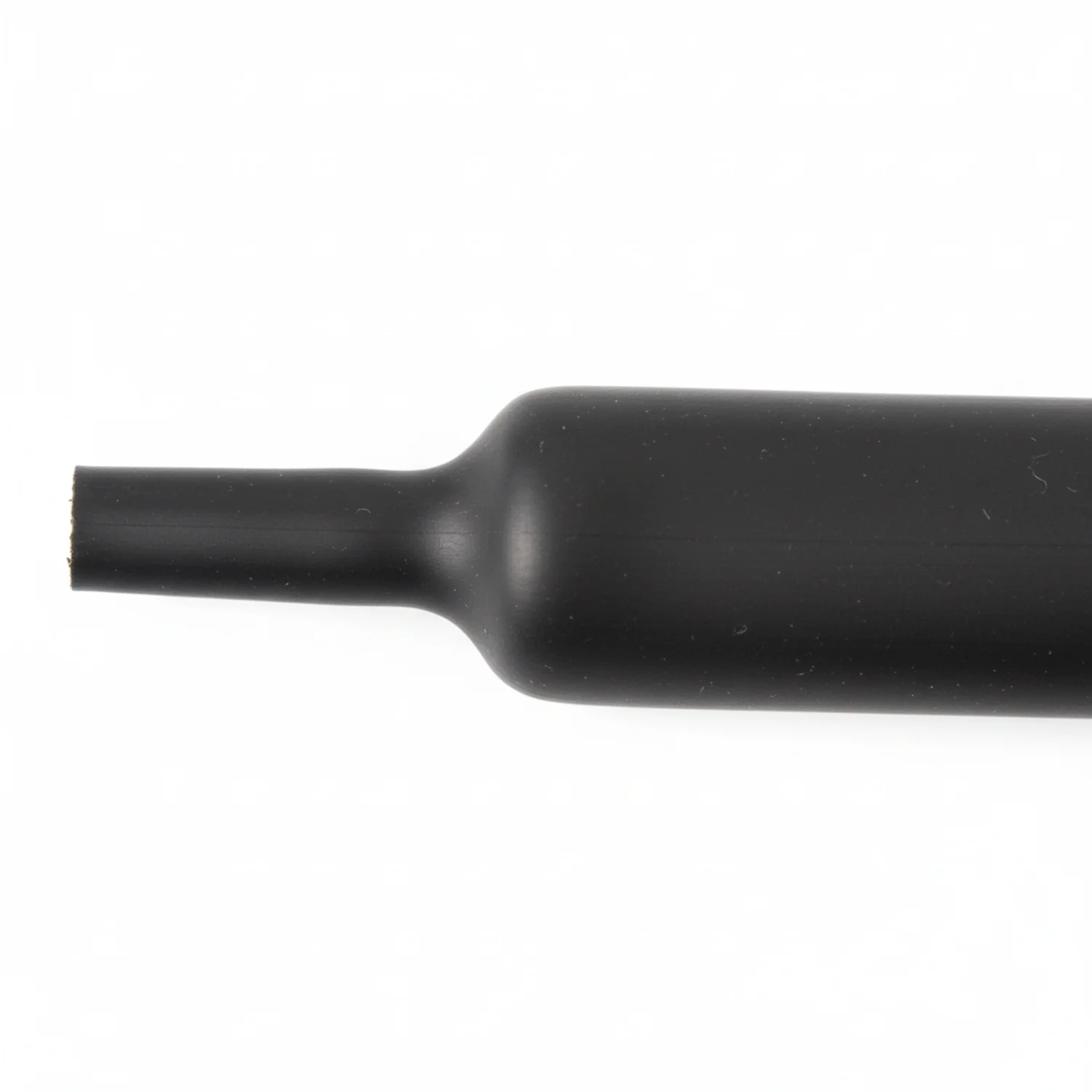

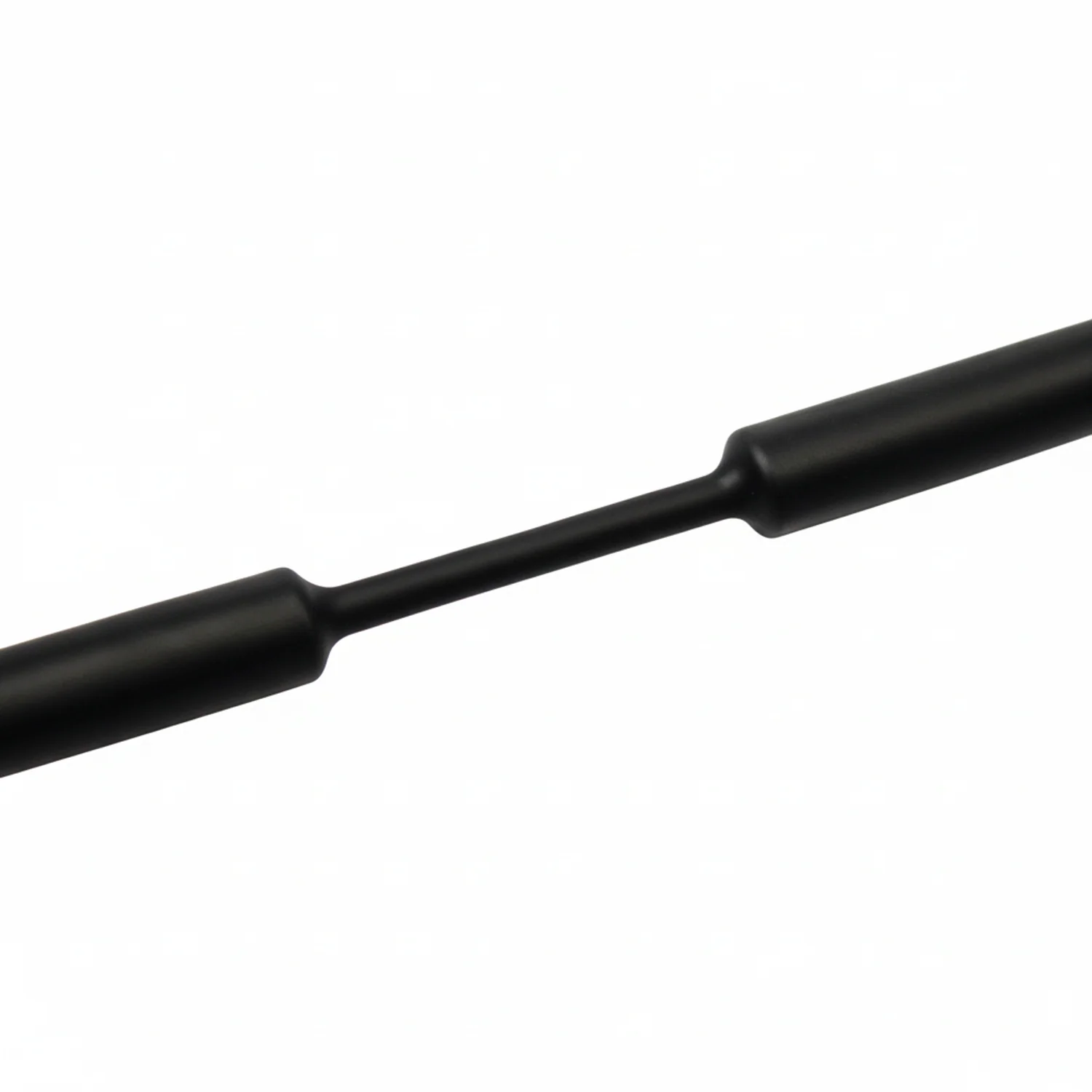

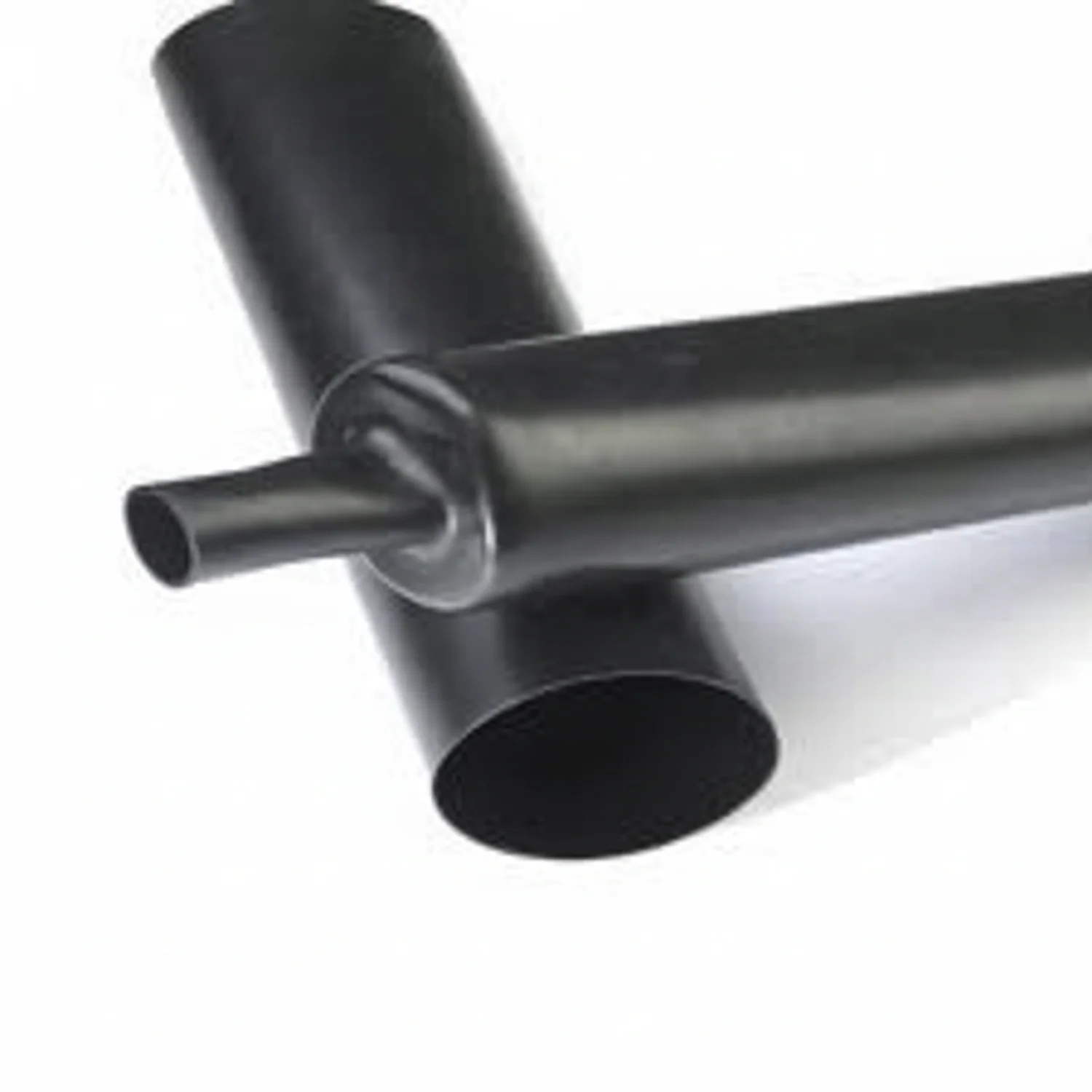

2:1 Polyolefin Heat Shrink Tubing Nominal Diameter: 1" Spool Size: 165 Feet

2:1 Polyolefin Heat Shrink Tubing Nominal Diameter: 1" Flat Width: 1-9/16" ID After Shrinking: .500" Wall After Shrinking: .039" Spool Size: 165 Feet Note: Tubing is always referred to by Nominal ID, not flat width. Flat widths are approximate, and are provided for reference purposes only. Features: • 2:1 Shrink Ratio (shrinks to ½ its original diameter) • Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), and 3 • UL 224 VW-1 and CSA OFT recognized • Maximum Continuous use temperature 135°C • Shrink Temperature of 120°C and operating temperature of -55°C to + 135°C • Crosses to : Sumitomo B2, Raychem RNF-100, Alpha FIT-221, 3M FP301 heat shrink, Canusa CPX-100, LG GSHS-1635F • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation. • RoHS compliant
